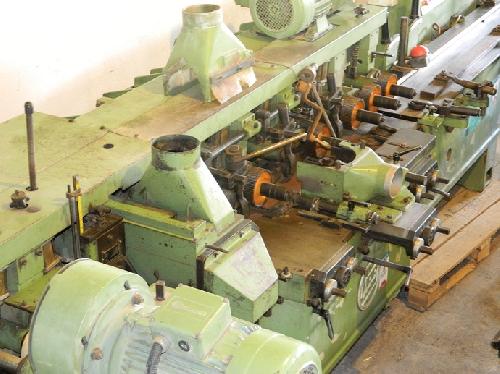

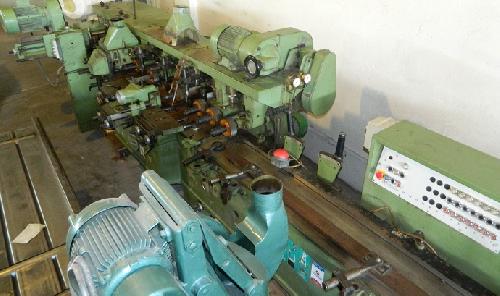

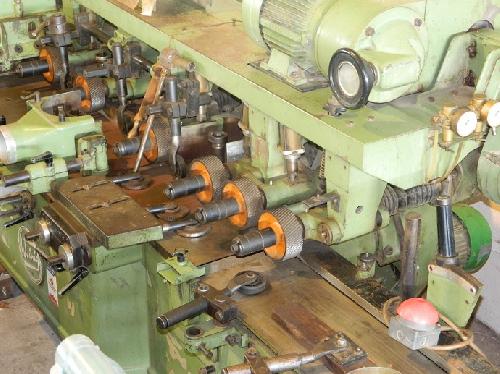

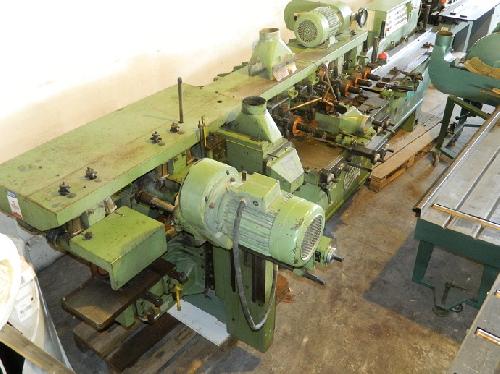

Masina industriala de prelucrat pe 4 fete cu 7 axe

Masina industriala de prelucrat pe 4 fete cu 7
axe

Cod: sh 620

Dim. max. material l/i: 230 / 120
mm
Nr. axe de lucru: 7 buc
Diam. axe: 40 mm
Turatie
freze: 5600 rot/min
Lungime masa alimentare: 1900
mm
:
Ax - 1: INFERIOR
Diam max scula frezare : 120
mm
Putere motor: 4 kW
Grosime max. span indreptare:
10 mm
Diam hota exhaustare: 120 mm
Ax - 2: DREAPTA

Diam max scula frezare : 160 mm
Putere motor: 5,5
kW
Diam hota exhaustare: 120 mm
Ax - 3: STANGA
Diam
max scula frezare: 160 mm
Putere motor: 11 kW
Diam
hota exhaustare: 120 mm
Ax - 4: DREAPTA
Diam max
scula frezare: 160 mm
Putere motor: 11 Kw
Diam hota
exhaustare: 120 mm
Ax - 5: SUPERIOR
Diam max scula
frezare : 160 mm
Putere motor: 11 kW
Diam hota
exhaustare: 120 mm
Ax - 6: INFERIOR
Diam max scula
frezare : 160 mm
Putere motor : 5,5 kW
Diam hota
exhaustare: 120 mm
Ax - 7: UNIVERSAL
Diam max scula
frezare : 160 mm
Putere motor: 11 kW
Diam hota
exhaustare: 140 mm
:
Viteza avans: 5 - 40
m/min
Putere motor avans: 5,5 kW
Diam. role de avans:
140 mm
:
